Step Functions Workflow
We will use AWS Step Functions to orchestrate the four core AI-processing Lambdas, persist results, and invoke Notification Trigger Lambda for review and failure alerts.
Step-by-Step Console Configuration
Access the Step Functions Dashboard:

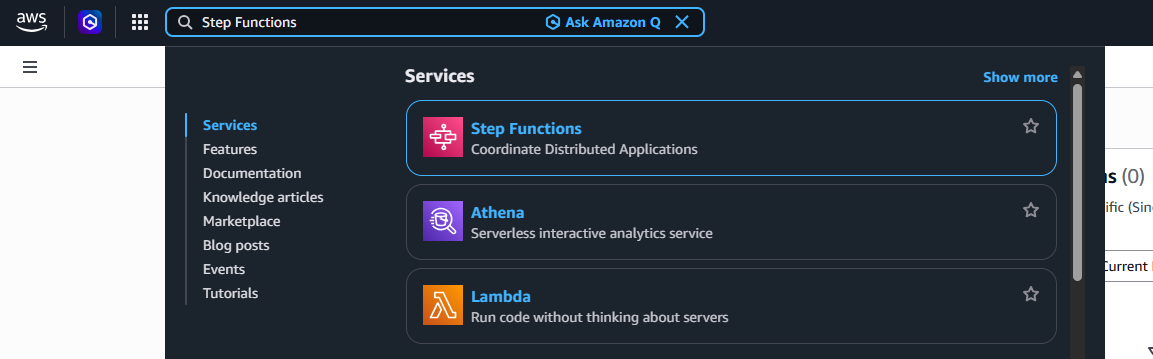

- Search for Step Functions in the AWS Console search bar ➔ Select Step Functions.

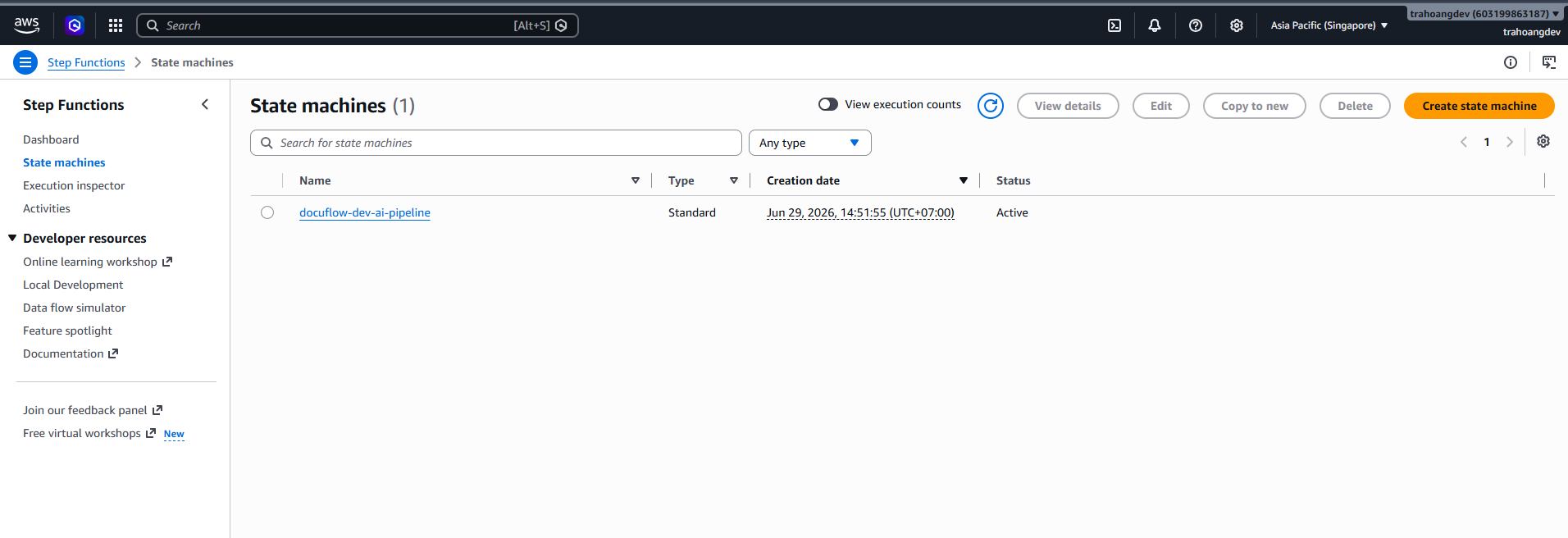

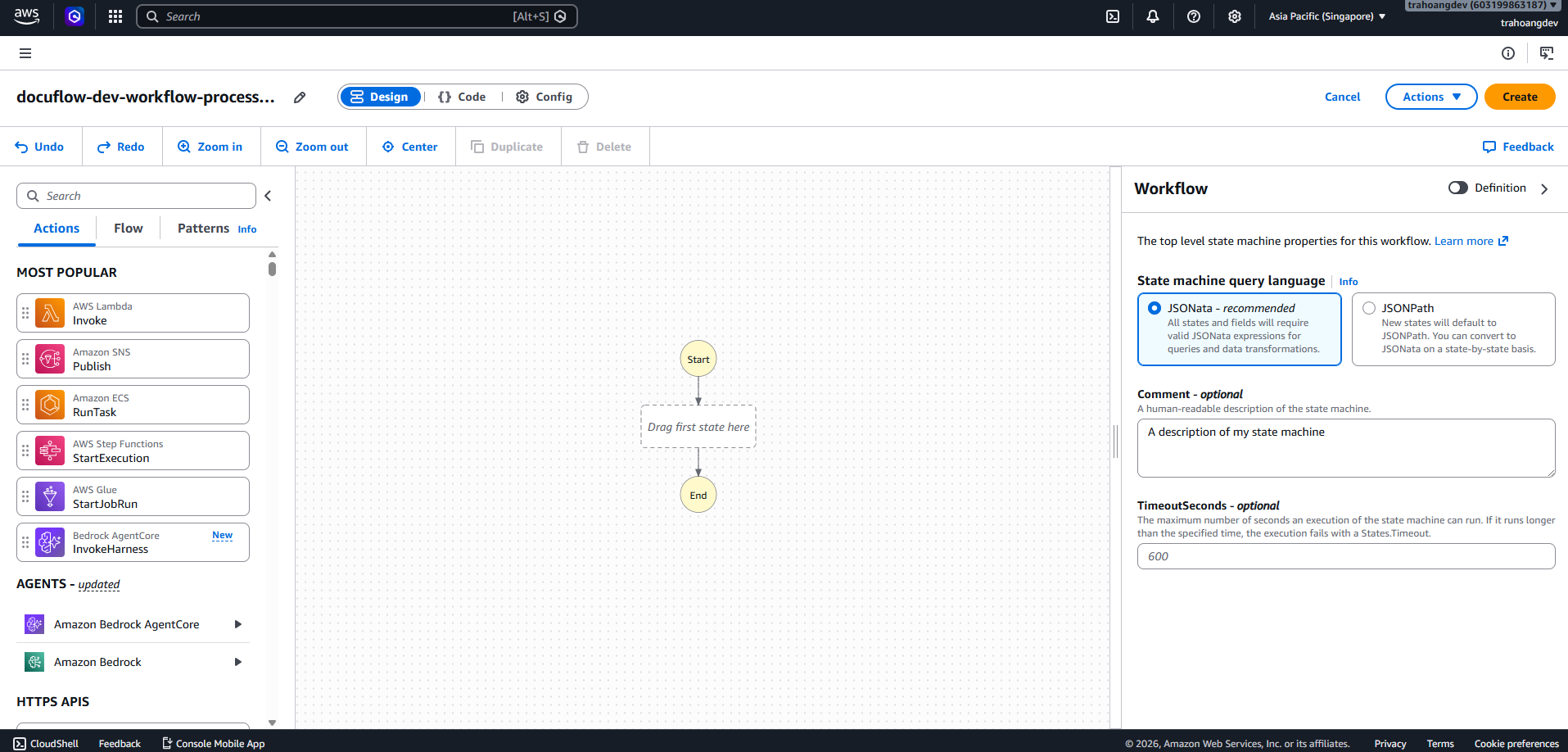

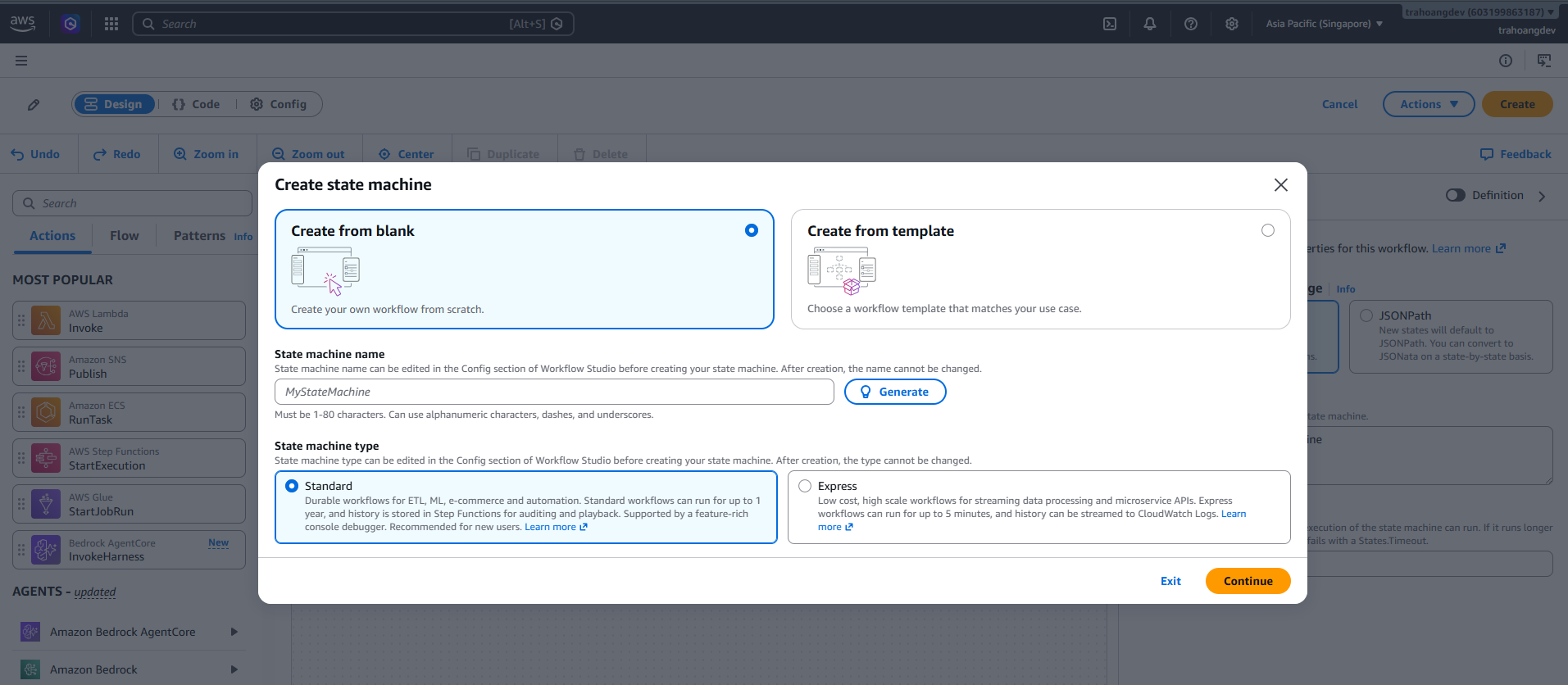

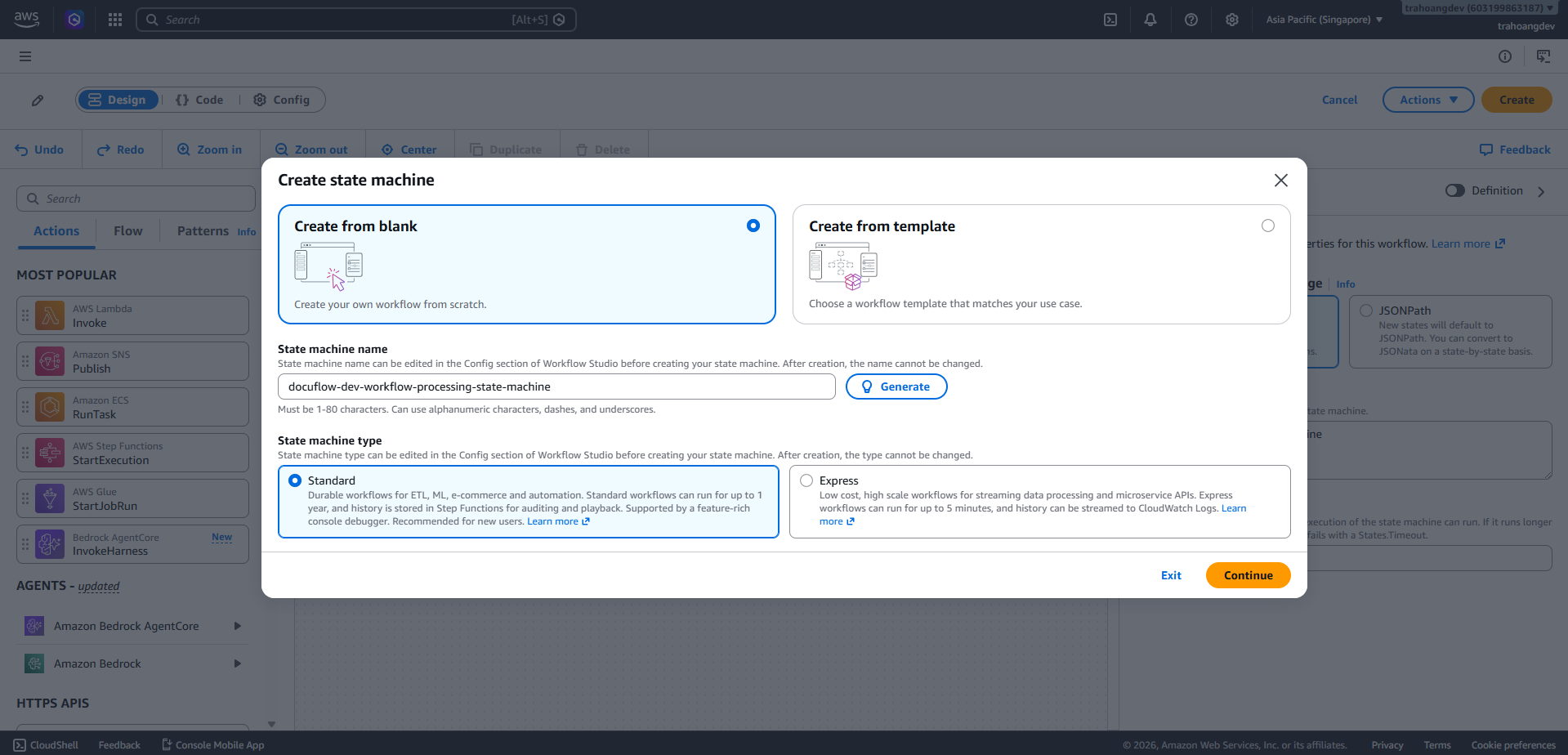

- In the left menu, choose State machines ➔ click Create state machine.
- Search for Step Functions in the AWS Console search bar ➔ Select Step Functions.
Configure Definition Code:

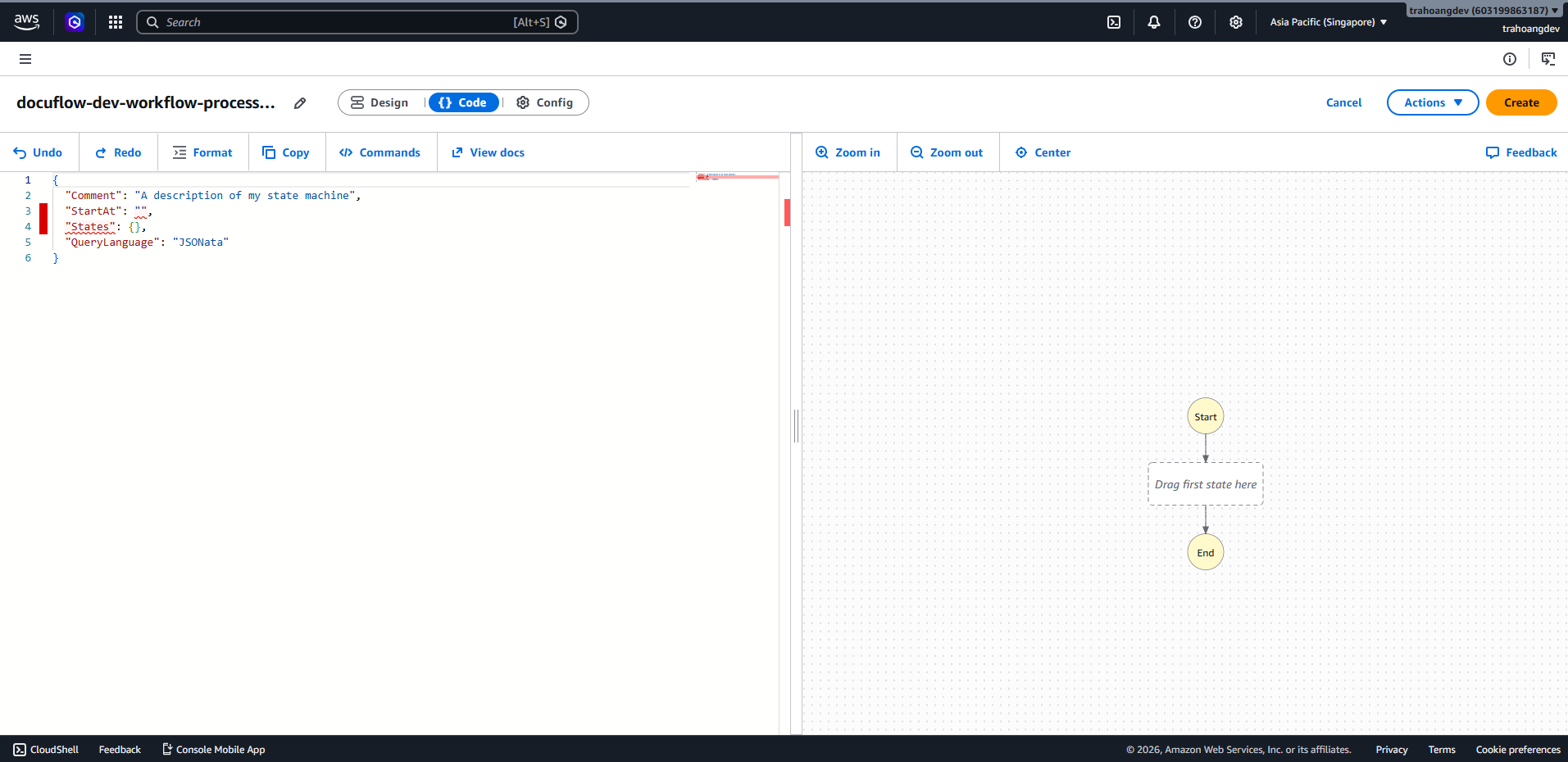

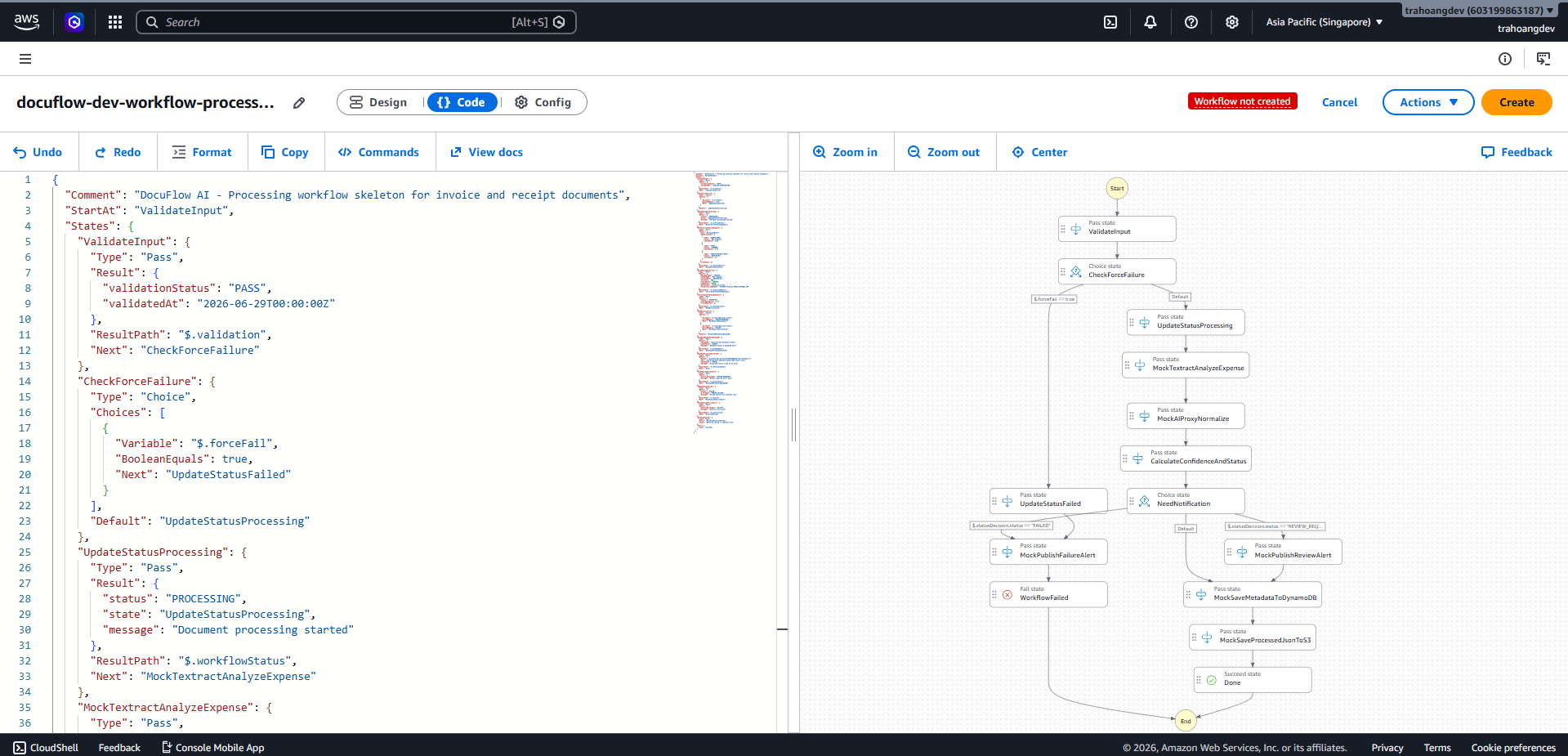

- Select Write in JSON (ASL Editor - Amazon States Language) to paste the workflow structure.
- Clear the default JSON and paste the ASL definition below.
- With AWS SAM, the
${...}values are populated throughDefinitionSubstitutions. - When creating the State Machine manually in the Console, replace
${WorkflowValidateFunctionArn},${TextractFunctionArn},${AiProxyFunctionArn},${ConfidenceStatusFunctionArn},${NotificationTriggerFunctionArn},${DocumentsTableName}, and${ProcessedBucketName}with deployed values before saving.
- Select Write in JSON (ASL Editor - Amazon States Language) to paste the workflow structure.
{
"Comment": "DocuFlow AI - Real processing workflow for invoice and receipt documents with standardized data contract",
"StartAt": "ValidateInput",
"States": {
"ValidateInput": {
"Type": "Task",
"Resource": "arn:aws:states:::lambda:invoke",
"Parameters": {
"FunctionName": "${WorkflowValidateFunctionArn}",
"Payload.$": "$"
},
"ResultSelector": {
"payload.$": "$.Payload"
},
"ResultPath": "$.validation",
"Retry": [
{
"ErrorEquals": [
"Lambda.ServiceException",
"Lambda.AWSLambdaException",
"Lambda.SdkClientException",
"Lambda.TooManyRequestsException"
],
"IntervalSeconds": 2,
"MaxAttempts": 3,
"BackoffRate": 2
}
],
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "NormalizeWorkflowInput"
},
"NormalizeWorkflowInput": {
"Type": "Pass",
"Parameters": {
"documentId.$": "$.validation.payload.documentId",
"userId.$": "$.validation.payload.userId",
"documentType.$": "$.validation.payload.documentType",
"bucket.$": "$.validation.payload.bucket",
"key.$": "$.validation.payload.key",
"rawS3Bucket.$": "$.validation.payload.rawS3Bucket",
"rawS3Key.$": "$.validation.payload.rawS3Key",
"s3RawPath.$": "$.validation.payload.s3RawPath",
"fileName.$": "$.validation.payload.originalFileName",
"originalFileName.$": "$.validation.payload.originalFileName",
"fileExtension.$": "$.validation.payload.fileExtension",
"contentType.$": "$.validation.payload.contentType",
"mimeType.$": "$.validation.payload.mimeType",
"pageCount.$": "$.validation.payload.pageCount",
"fileSizeBytes.$": "$.validation.payload.fileSizeBytes",
"validation": {
"payload.$": "$.validation.payload"
}
},
"ResultPath": "$",
"Next": "UpdateStatusProcessing"
},
"UpdateStatusProcessing": {
"Type": "Pass",
"Parameters": {
"status": "PROCESSING",
"state": "UpdateStatusProcessing",
"message": "Document processing started",
"updatedAt.$": "$$.State.EnteredTime"
},
"ResultPath": "$.workflowStatus",
"Next": "SaveProcessingStatusToDynamoDB"
},
"SaveProcessingStatusToDynamoDB": {
"Type": "Task",
"Resource": "arn:aws:states:::dynamodb:updateItem",
"Parameters": {
"TableName": "${DocumentsTableName}",
"Key": {
"PK": {
"S.$": "States.Format('USER#{}', $.userId)"
},
"SK": {
"S.$": "States.Format('DOC#{}', $.documentId)"
}
},
"UpdateExpression": "SET schemaVersion = :schemaVersion, documentId = :documentId, userId = :userId, documentType = :documentType, originalFileName = :originalFileName, fileExtension = :fileExtension, pageCount = :pageCount, #status = :status, rawS3Key = :rawS3Key, createdAt = if_not_exists(createdAt, :createdAt), updatedAt = :updatedAt, GSI1PK = :gsi1pk, GSI1SK = :gsi1sk",
"ExpressionAttributeNames": {
"#status": "status"
},
"ExpressionAttributeValues": {
":schemaVersion": {
"S": "1.0.0"
},
":documentId": {
"S.$": "$.documentId"
},
":userId": {
"S.$": "$.userId"
},
":documentType": {
"S.$": "$.documentType"
},
":originalFileName": {
"S.$": "$.fileName"
},
":fileExtension": {
"S.$": "$.fileExtension"
},
":pageCount": {
"N.$": "States.Format('{}', $.pageCount)"
},
":status": {
"S": "PROCESSING"
},
":rawS3Key": {
"S.$": "$.key"
},
":createdAt": {
"S.$": "$$.Execution.StartTime"
},
":updatedAt": {
"S.$": "$$.State.EnteredTime"
},
":gsi1pk": {
"S": "STATUS#PROCESSING"
},
":gsi1sk": {
"S.$": "$$.Execution.StartTime"
}
}
},
"ResultPath": "$.processingStatusSave",
"Retry": [
{
"ErrorEquals": [
"DynamoDB.ProvisionedThroughputExceededException",
"DynamoDB.RequestLimitExceeded",
"DynamoDB.InternalServerError"
],
"IntervalSeconds": 1,
"MaxAttempts": 4,
"BackoffRate": 2
}
],
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "RunTextractAnalyzeExpense"
},
"RunTextractAnalyzeExpense": {
"Type": "Task",
"Resource": "arn:aws:states:::lambda:invoke",
"Parameters": {
"FunctionName": "${TextractFunctionArn}",
"Payload": {
"documentId.$": "$.documentId",
"userId.$": "$.userId",
"rawS3Bucket.$": "$.bucket",
"rawS3Key.$": "$.key",
"bucket.$": "$.bucket",
"key.$": "$.key",
"originalFileName.$": "$.fileName",
"mimeType.$": "$.contentType",
"fileName.$": "$.fileName",
"contentType.$": "$.contentType",
"documentType.$": "$.documentType",
"pageCount.$": "$.pageCount",
"fileSizeBytes.$": "$.fileSizeBytes",
"validation.$": "$.validation.payload"
}
},
"ResultSelector": {
"payload.$": "$.Payload"
},
"ResultPath": "$.textractResult",
"Retry": [
{
"ErrorEquals": [
"Lambda.ServiceException",
"Lambda.AWSLambdaException",
"Lambda.SdkClientException",
"Lambda.TooManyRequestsException"
],
"IntervalSeconds": 2,
"MaxAttempts": 3,
"BackoffRate": 2
}
],
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "SaveTextractRawToS3"
},
"SaveTextractRawToS3": {
"Type": "Task",
"Resource": "arn:aws:states:::aws-sdk:s3:putObject",
"Parameters": {
"Bucket": "${ProcessedBucketName}",
"Key.$": "States.Format('processed/{}/{}/textract-raw.json', $.userId, $.documentId)",
"Body.$": "States.JsonToString($.textractResult.payload)",
"ContentType": "application/json"
},
"ResultPath": "$.textractRawSave",
"Retry": [
{
"ErrorEquals": [
"S3.InternalError",
"S3.SlowDown",
"S3.ServiceUnavailable"
],
"IntervalSeconds": 1,
"MaxAttempts": 4,
"BackoffRate": 2
}
],
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "CallAIProxyLambda"
},
"CallAIProxyLambda": {
"Type": "Task",
"Resource": "arn:aws:states:::lambda:invoke",
"Parameters": {
"FunctionName": "${AiProxyFunctionArn}",
"Payload": {
"documentId.$": "$.documentId",
"userId.$": "$.userId",
"rawS3Bucket.$": "$.bucket",
"rawS3Key.$": "$.key",
"originalFileName.$": "$.fileName",
"mimeType.$": "$.contentType",
"extractedData.$": "$.textractResult.payload.extractedData",
"textractResult.$": "$.textractResult.payload",
"bucket.$": "$.bucket",
"key.$": "$.key",
"fileName.$": "$.fileName",
"contentType.$": "$.contentType",
"documentType.$": "$.documentType",
"pageCount.$": "$.pageCount"
}
},
"ResultSelector": {
"payload.$": "$.Payload"
},
"ResultPath": "$.normalizedResult",
"Retry": [
{
"ErrorEquals": [
"Lambda.ServiceException",
"Lambda.AWSLambdaException",
"Lambda.SdkClientException",
"Lambda.TooManyRequestsException"
],
"IntervalSeconds": 2,
"MaxAttempts": 3,
"BackoffRate": 2
}
],
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "SaveNormalizedJsonToS3"
},
"SaveNormalizedJsonToS3": {
"Type": "Task",
"Resource": "arn:aws:states:::aws-sdk:s3:putObject",
"Parameters": {
"Bucket": "${ProcessedBucketName}",
"Key.$": "States.Format('processed/{}/{}/normalized.json', $.userId, $.documentId)",
"Body.$": "States.JsonToString($.normalizedResult.payload)",
"ContentType": "application/json"
},
"ResultPath": "$.normalizedSave",
"Retry": [
{
"ErrorEquals": [
"S3.InternalError",
"S3.SlowDown",
"S3.ServiceUnavailable"
],
"IntervalSeconds": 1,
"MaxAttempts": 4,
"BackoffRate": 2
}
],
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "CalculateConfidenceAndStatus"
},
"CalculateConfidenceAndStatus": {
"Type": "Task",
"Resource": "arn:aws:states:::lambda:invoke",
"Parameters": {
"FunctionName": "${ConfidenceStatusFunctionArn}",
"Payload": {
"documentId.$": "$.documentId",
"userId.$": "$.userId",
"textractResult.$": "$.textractResult.payload",
"normalizedResult.$": "$.normalizedResult.payload"
}
},
"ResultSelector": {
"payload.$": "$.Payload"
},
"ResultPath": "$.statusDecision",
"Retry": [
{
"ErrorEquals": [
"Lambda.ServiceException",
"Lambda.AWSLambdaException",
"Lambda.SdkClientException",
"Lambda.TooManyRequestsException"
],
"IntervalSeconds": 2,
"MaxAttempts": 3,
"BackoffRate": 2
}
],
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "BuildDocumentResult"
},
"BuildDocumentResult": {
"Type": "Pass",
"Parameters": {
"schemaVersion": "1.0.0",
"documentId.$": "$.documentId",
"userId.$": "$.userId",
"documentType.$": "$.normalizedResult.payload.documentType",
"status.$": "$.statusDecision.payload.status",
"file": {
"originalFileName.$": "$.fileName",
"fileExtension.$": "$.fileExtension",
"mimeType.$": "$.contentType",
"fileSizeBytes.$": "$.validation.payload.objectSize",
"pageCount.$": "$.pageCount"
},
"storage": {
"rawS3Bucket.$": "$.bucket",
"rawS3Key.$": "$.key",
"processedS3Bucket": "${ProcessedBucketName}",
"processedS3Key.$": "States.Format('processed/{}/{}/result.json', $.userId, $.documentId)",
"textractRawS3Key.$": "States.Format('processed/{}/{}/textract-raw.json', $.userId, $.documentId)",
"normalizedS3Key.$": "States.Format('processed/{}/{}/normalized.json', $.userId, $.documentId)"
},
"workflow": {
"executionId.$": "$$.Execution.Id",
"queueMessageId": "",
"retryCount": 0,
"startedAt.$": "$$.Execution.StartTime",
"completedAt.$": "$$.State.EnteredTime"
},
"extraction": {
"textractApi": "AnalyzeExpense",
"textractConfidenceScore": 0,
"aiProvider": "external-ai",
"aiModel": "configured-model-name",
"aiRequestId": "",
"normalizationVersion": "1.0.0",
"normalizedAt.$": "$$.State.EnteredTime"
},
"invoice": {
"vendorName.$": "$.normalizedResult.payload.invoice.vendorName",
"vendorTaxId": "",
"invoiceNumber.$": "$.normalizedResult.payload.invoice.invoiceNumber",
"invoiceDate.$": "$.normalizedResult.payload.invoice.invoiceDate",
"dueDate.$": "$.normalizedResult.payload.invoice.dueDate",
"currency.$": "$.normalizedResult.payload.invoice.currency",
"subtotalAmount.$": "$.normalizedResult.payload.invoice.subtotalAmount",
"taxAmount.$": "$.normalizedResult.payload.invoice.taxAmount",
"discountAmount": 0,
"shippingAmount": 0,
"totalAmount.$": "$.normalizedResult.payload.invoice.totalAmount",
"paymentMethod": ""
},
"lineItems.$": "$.normalizedResult.payload.lineItems",
"confidence": {
"confidenceScore.$": "$.statusDecision.payload.confidence.confidenceScore",
"hasLowConfidence.$": "$.statusDecision.payload.confidence.hasLowConfidence",
"fieldConfidence.$": "$.statusDecision.payload.confidence.fieldConfidence"
},
"review": {
"reviewStatus.$": "$.statusDecision.payload.review.reviewStatus",
"reviewReasonCodes.$": "$.statusDecision.payload.review.reviewReasonCodes",
"reviewedBy.$": "$.statusDecision.payload.review.reviewedBy",
"reviewedAt.$": "$.statusDecision.payload.review.reviewedAt",
"corrections.$": "$.statusDecision.payload.review.corrections"
},
"error": {
"errorCode": null,
"errorMessage": null,
"errorStage": null,
"lastErrorAt": null
},
"audit": {
"createdAt.$": "$$.Execution.StartTime",
"updatedAt.$": "$$.State.EnteredTime",
"createdBy.$": "$.userId",
"updatedBy": "system"
}
},
"ResultPath": "$.finalDocument",
"Next": "SaveProcessedJsonToS3"
},
"SaveProcessedJsonToS3": {
"Type": "Task",
"Resource": "arn:aws:states:::aws-sdk:s3:putObject",
"Parameters": {
"Bucket": "${ProcessedBucketName}",
"Key.$": "States.Format('processed/{}/{}/result.json', $.userId, $.documentId)",
"Body.$": "States.JsonToString($.finalDocument)",
"ContentType": "application/json"
},
"ResultPath": "$.processedResultSave",
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "SaveMetadataToDynamoDB"
},
"SaveMetadataToDynamoDB": {
"Type": "Task",
"Resource": "arn:aws:states:::dynamodb:putItem",
"Parameters": {
"TableName": "${DocumentsTableName}",
"Item": {
"PK": {
"S.$": "States.Format('USER#{}', $.userId)"
},
"SK": {
"S.$": "States.Format('DOC#{}', $.documentId)"
},
"GSI1PK": {
"S.$": "States.Format('STATUS#{}', $.finalDocument.status)"
},
"GSI1SK": {
"S.$": "$.finalDocument.audit.createdAt"
},
"schemaVersion": {
"S.$": "$.finalDocument.schemaVersion"
},
"documentId": {
"S.$": "$.finalDocument.documentId"
},
"userId": {
"S.$": "$.finalDocument.userId"
},
"documentType": {
"S.$": "$.finalDocument.documentType"
},
"status": {
"S.$": "$.finalDocument.status"
},
"originalFileName": {
"S.$": "$.finalDocument.file.originalFileName"
},
"rawS3Key": {
"S.$": "$.finalDocument.storage.rawS3Key"
},
"processedS3Key": {
"S.$": "$.finalDocument.storage.processedS3Key"
},
"vendorName": {
"S.$": "$.finalDocument.invoice.vendorName"
},
"invoiceDate": {
"S.$": "$.finalDocument.invoice.invoiceDate"
},
"currency": {
"S.$": "$.finalDocument.invoice.currency"
},
"totalAmount": {
"N.$": "States.Format('{}', $.finalDocument.invoice.totalAmount)"
},
"confidenceScore": {
"N.$": "States.Format('{}', $.finalDocument.confidence.confidenceScore)"
},
"reviewStatus": {
"S.$": "$.finalDocument.review.reviewStatus"
},
"reviewReasonCodes": {
"S.$": "States.JsonToString($.finalDocument.review.reviewReasonCodes)"
},
"createdAt": {
"S.$": "$.finalDocument.audit.createdAt"
},
"updatedAt": {
"S.$": "$.finalDocument.audit.updatedAt"
}
}
},
"ResultPath": "$.dynamoDbSave",
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "CheckFinalStatus"
},
"CheckFinalStatus": {
"Type": "Choice",
"Choices": [
{
"Variable": "$.finalDocument.status",
"StringEquals": "FAILED",
"Next": "PublishFailureAlert"
},
{
"Variable": "$.finalDocument.status",
"StringEquals": "REVIEW_REQUIRED",
"Next": "PublishSNSAlert"
}
],
"Default": "Done"
},
"PublishSNSAlert": {
"Type": "Task",
"Resource": "arn:aws:states:::lambda:invoke",
"Parameters": {
"FunctionName": "${NotificationTriggerFunctionArn}",
"Payload.$": "$.finalDocument"
},
"ResultSelector": {
"payload.$": "$.Payload"
},
"ResultPath": "$.notificationResult",
"Retry": [
{
"ErrorEquals": [
"Lambda.ServiceException",
"Lambda.AWSLambdaException",
"Lambda.SdkClientException",
"Lambda.TooManyRequestsException"
],
"IntervalSeconds": 2,
"MaxAttempts": 3,
"BackoffRate": 2
}
],
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.workflowError",
"Next": "BuildFailureResult"
}
],
"Next": "Done"
},
"BuildFailureResult": {
"Type": "Pass",
"Parameters": {
"schemaVersion": "1.0.0",
"documentId.$": "$.documentId",
"userId.$": "$.userId",
"documentType.$": "$.documentType",
"status": "FAILED",
"file": {
"originalFileName.$": "$.fileName",
"fileExtension.$": "$.fileExtension",
"mimeType.$": "$.contentType",
"fileSizeBytes": 0,
"pageCount.$": "$.pageCount"
},
"storage": {
"rawS3Bucket.$": "$.bucket",
"rawS3Key.$": "$.key",
"processedS3Bucket": "${ProcessedBucketName}",
"processedS3Key.$": "States.Format('processed/{}/{}/result.json', $.userId, $.documentId)",
"textractRawS3Key.$": "States.Format('processed/{}/{}/textract-raw.json', $.userId, $.documentId)",
"normalizedS3Key.$": "States.Format('processed/{}/{}/normalized.json', $.userId, $.documentId)"
},
"workflow": {
"executionId.$": "$$.Execution.Id",
"queueMessageId": "",
"retryCount": 0,
"startedAt.$": "$$.Execution.StartTime",
"completedAt.$": "$$.State.EnteredTime"
},
"extraction": {
"textractApi": "AnalyzeExpense",
"textractConfidenceScore": 0,
"aiProvider": "external-ai",
"aiModel": "configured-model-name",
"aiRequestId": "",
"normalizationVersion": "1.0.0",
"normalizedAt": null
},
"invoice": {
"vendorName": "",
"vendorTaxId": "",
"invoiceNumber": "",
"invoiceDate": "",
"dueDate": "",
"currency": "",
"subtotalAmount": 0,
"taxAmount": 0,
"discountAmount": 0,
"shippingAmount": 0,
"totalAmount": 0,
"paymentMethod": ""
},
"lineItems": [],
"confidence": {
"confidenceScore": 0,
"hasLowConfidence": true,
"fieldConfidence": {}
},
"review": {
"reviewStatus": "PENDING",
"reviewReasonCodes": [],
"reviewedBy": null,
"reviewedAt": null,
"corrections": []
},
"error": {
"errorCode": "UNKNOWN_ERROR",
"errorMessage.$": "$.workflowError.Cause",
"errorStage": "WORKFLOW",
"lastErrorAt.$": "$$.State.EnteredTime"
},
"audit": {
"createdAt.$": "$$.Execution.StartTime",
"updatedAt.$": "$$.State.EnteredTime",
"createdBy.$": "$.userId",
"updatedBy": "system"
}
},
"ResultPath": "$.finalDocument",
"Next": "SaveFailureMetadataToDynamoDB"
},
"SaveFailureMetadataToDynamoDB": {
"Type": "Task",
"Resource": "arn:aws:states:::dynamodb:putItem",
"Parameters": {
"TableName": "${DocumentsTableName}",
"Item": {
"PK": {
"S.$": "States.Format('USER#{}', $.userId)"
},
"SK": {
"S.$": "States.Format('DOC#{}', $.documentId)"
},
"GSI1PK": {
"S": "STATUS#FAILED"
},
"GSI1SK": {
"S.$": "$.finalDocument.audit.createdAt"
},
"schemaVersion": {
"S.$": "$.finalDocument.schemaVersion"
},
"documentId": {
"S.$": "$.finalDocument.documentId"
},
"userId": {
"S.$": "$.finalDocument.userId"
},
"documentType": {
"S.$": "$.finalDocument.documentType"
},
"status": {
"S": "FAILED"
},
"originalFileName": {
"S.$": "$.finalDocument.file.originalFileName"
},
"rawS3Key": {
"S.$": "$.finalDocument.storage.rawS3Key"
},
"processedS3Key": {
"S.$": "$.finalDocument.storage.processedS3Key"
},
"vendorName": {
"S.$": "$.finalDocument.invoice.vendorName"
},
"invoiceDate": {
"S.$": "$.finalDocument.invoice.invoiceDate"
},
"currency": {
"S.$": "$.finalDocument.invoice.currency"
},
"totalAmount": {
"N": "0"
},
"confidenceScore": {
"N": "0"
},
"reviewStatus": {
"S.$": "$.finalDocument.review.reviewStatus"
},
"errorCode": {
"S.$": "$.finalDocument.error.errorCode"
},
"errorMessage": {
"S.$": "$.finalDocument.error.errorMessage"
},
"errorStage": {
"S.$": "$.finalDocument.error.errorStage"
},
"createdAt": {
"S.$": "$.finalDocument.audit.createdAt"
},
"updatedAt": {
"S.$": "$.finalDocument.audit.updatedAt"
}
}
},
"ResultPath": "$.failureDynamoDbSave",
"Next": "PublishFailureAlert"
},
"PublishFailureAlert": {
"Type": "Task",
"Resource": "arn:aws:states:::lambda:invoke",
"Parameters": {
"FunctionName": "${NotificationTriggerFunctionArn}",
"Payload.$": "$.finalDocument"
},
"ResultSelector": {
"payload.$": "$.Payload"
},
"ResultPath": "$.failureNotificationResult",
"Retry": [
{
"ErrorEquals": [
"Lambda.ServiceException",
"Lambda.AWSLambdaException",
"Lambda.SdkClientException",
"Lambda.TooManyRequestsException"
],
"IntervalSeconds": 2,
"MaxAttempts": 3,
"BackoffRate": 2
}
],
"Catch": [
{
"ErrorEquals": [
"States.ALL"
],
"ResultPath": "$.notificationError",
"Next": "WorkflowFailed"
}
],
"Next": "WorkflowFailed"
},
"WorkflowFailed": {
"Type": "Fail",
"Error": "DocuFlowWorkflowFailed",
"Cause": "Workflow failed. Check execution history and CloudWatch logs."
},
"Done": {
"Type": "Succeed"
}
}
}

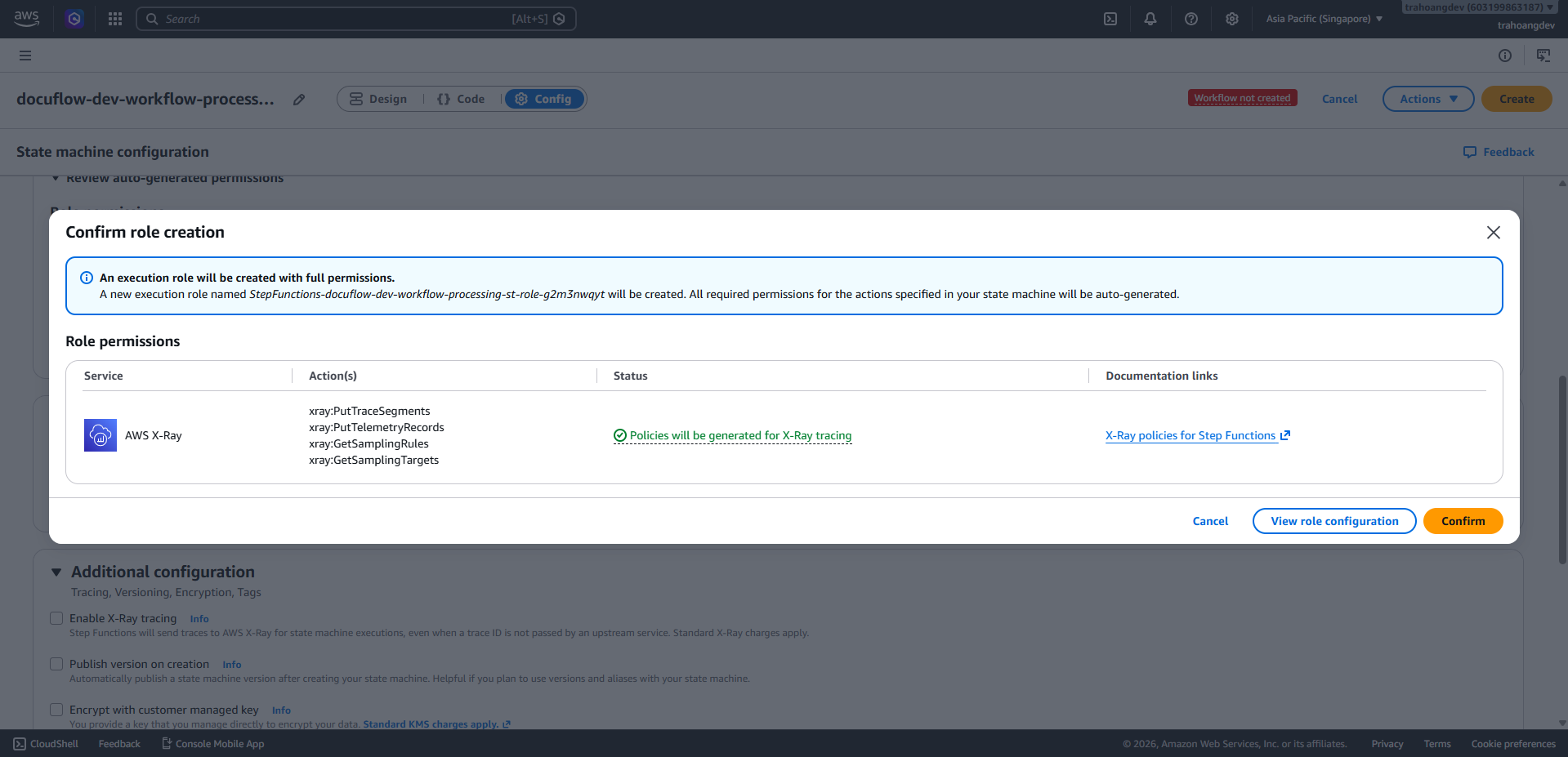

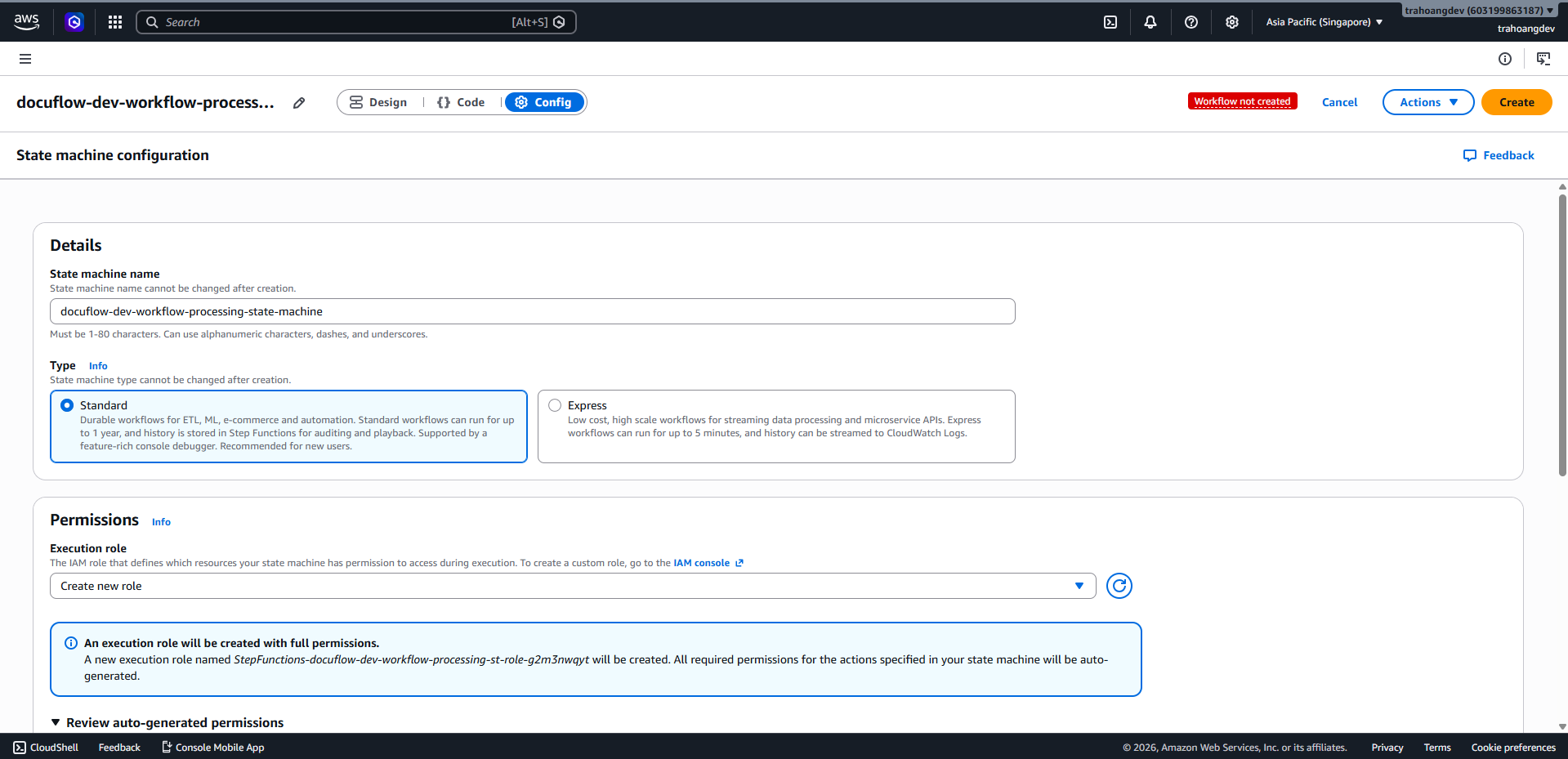

Configure Permissions and Complete Deployment:
- Click Next.
- State machine name: Enter
docuflow-dev-workflow-processing-state-machine. - Permissions: Choose Choose an existing role ➔ select
docuflow-dev-workflow-stepfunctions-rolecreated in IAM steps.

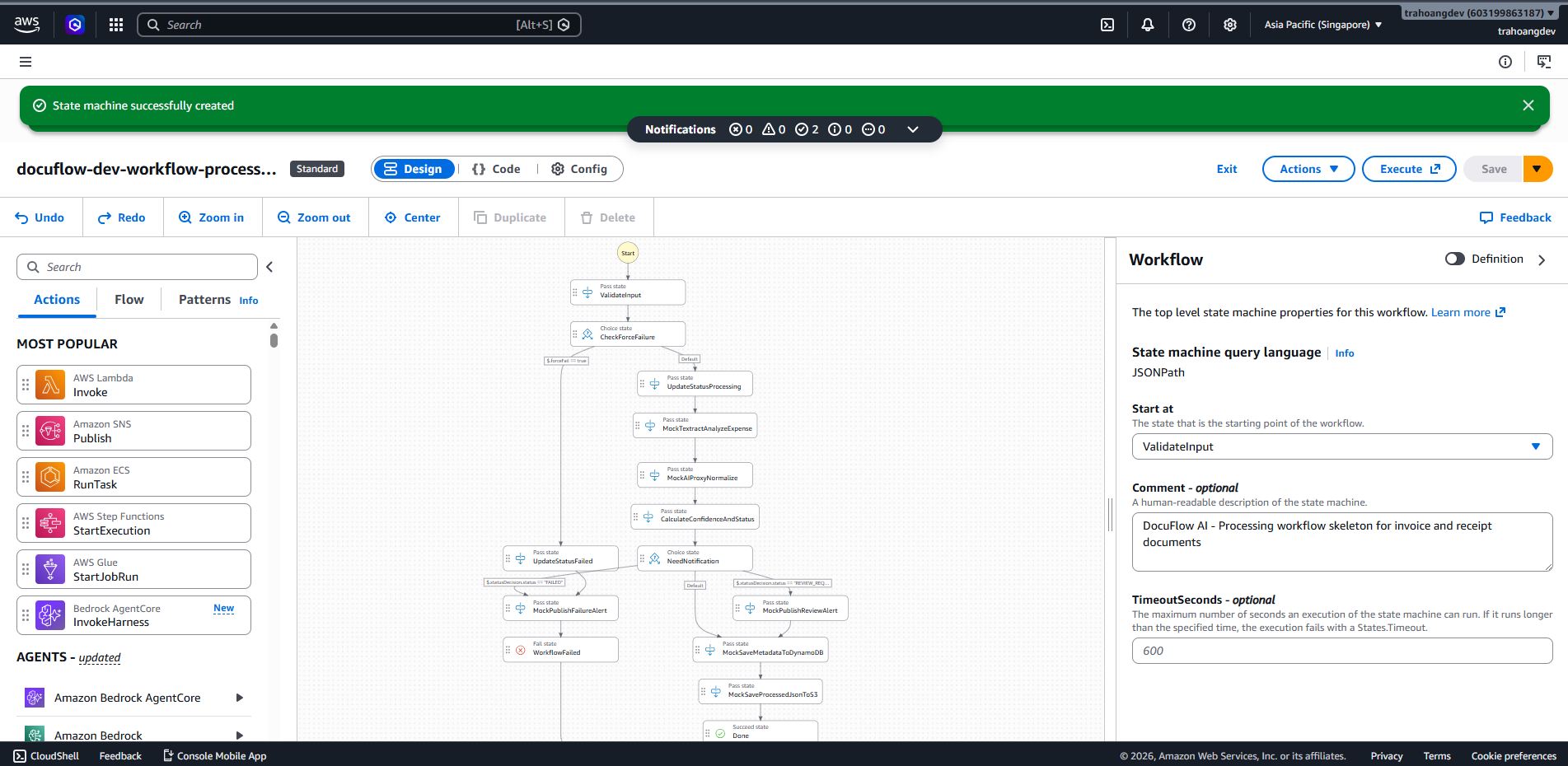

- Click Create state machine.

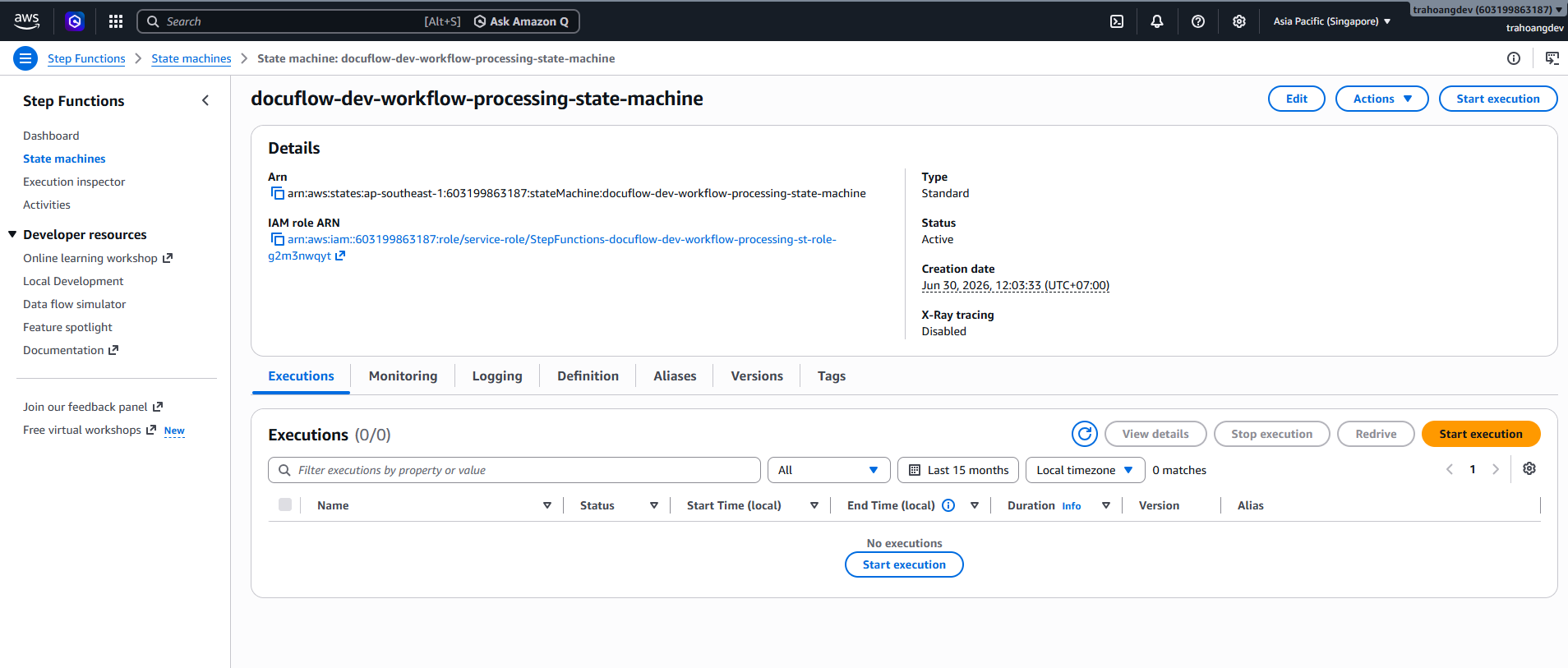

Sync the State Machine ARN with your Job Starter Lambda:
- Copy the ARN of your new State Machine (e.g.
arn:aws:states:ap-southeast-1:<AWS_ACCOUNT_ID>:stateMachine:docuflow-dev-workflow-processing-state-machine). - Return to your
docuflow-dev-ingestion-job-starter-lambdaconfiguration. - Open Configuration ➔ Environment variables ➔ Click Edit ➔ update
STATE_MACHINE_ARNwith your copied State Machine ARN. Click Save.
- Copy the ARN of your new State Machine (e.g.

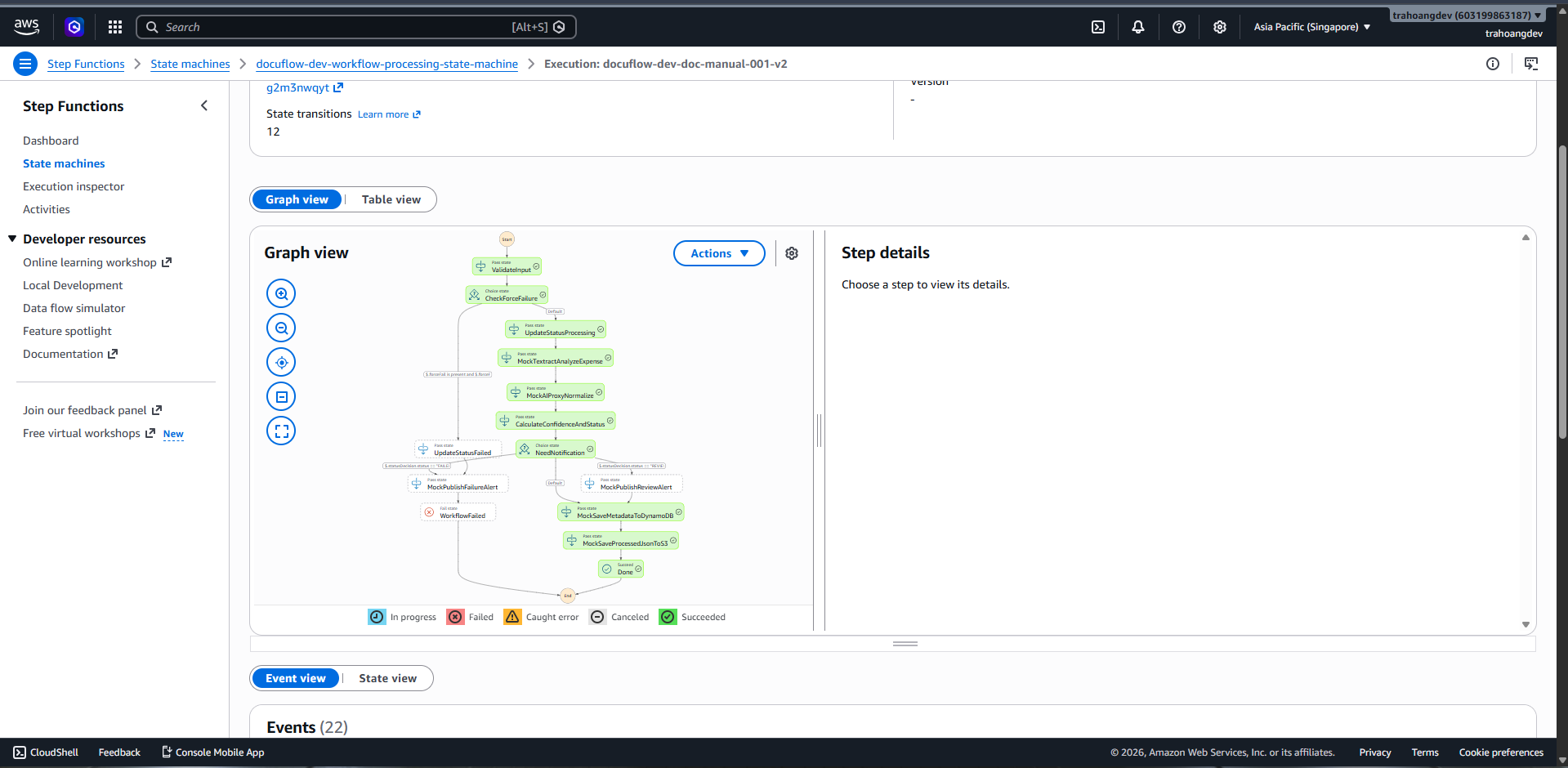

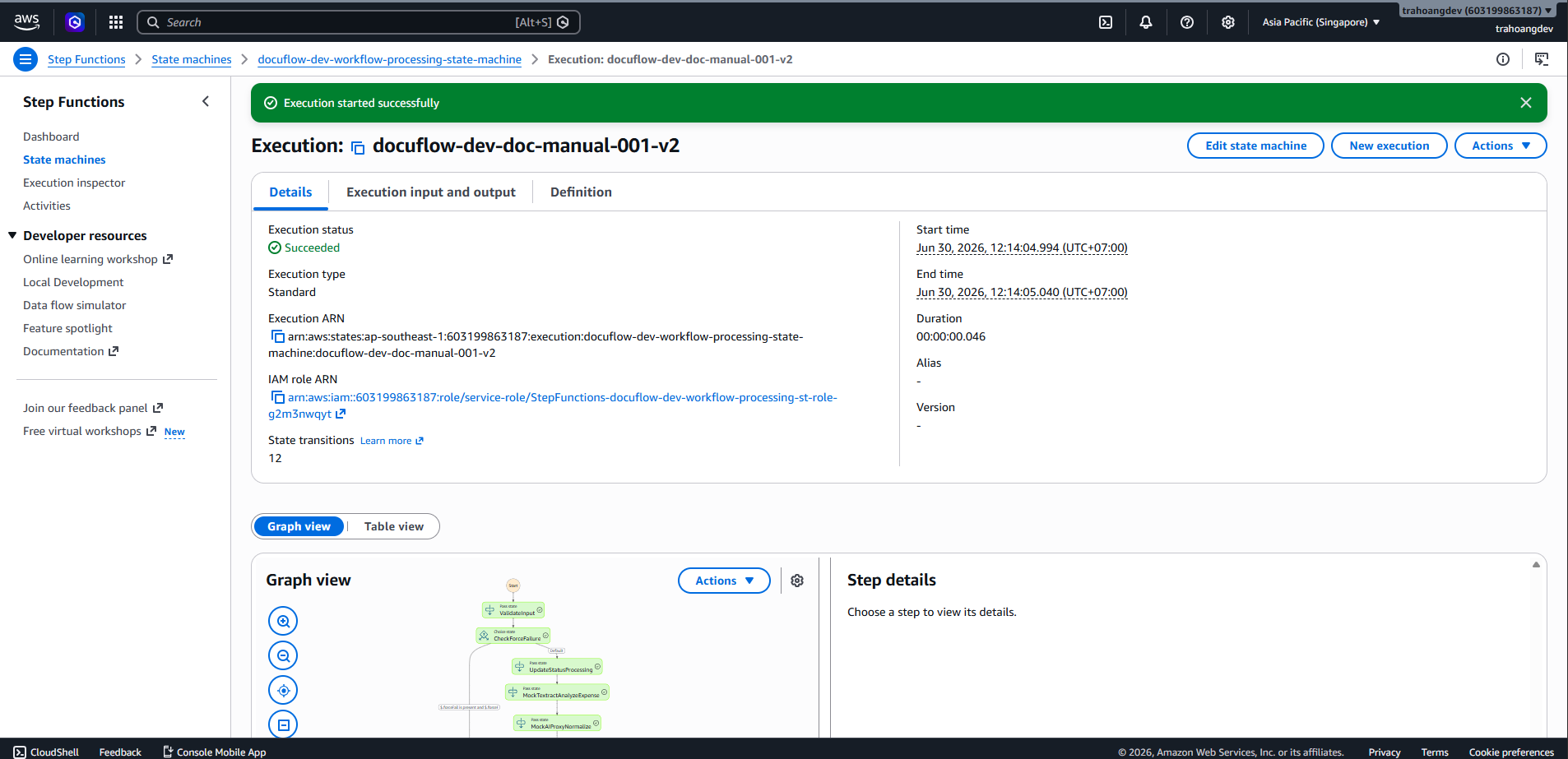

Evidence
Confirm that the State Machine graph contains the four Lambda tasks in the expected order and both success and failure terminal states.
